Olympus GIF/CF/PCF Series
Point-of-use education for the listed scope families, plus verified nomenclature for the GIF/CF/PCF-190 Series.
GIF/CF/PCF-190 Series anatomy reference

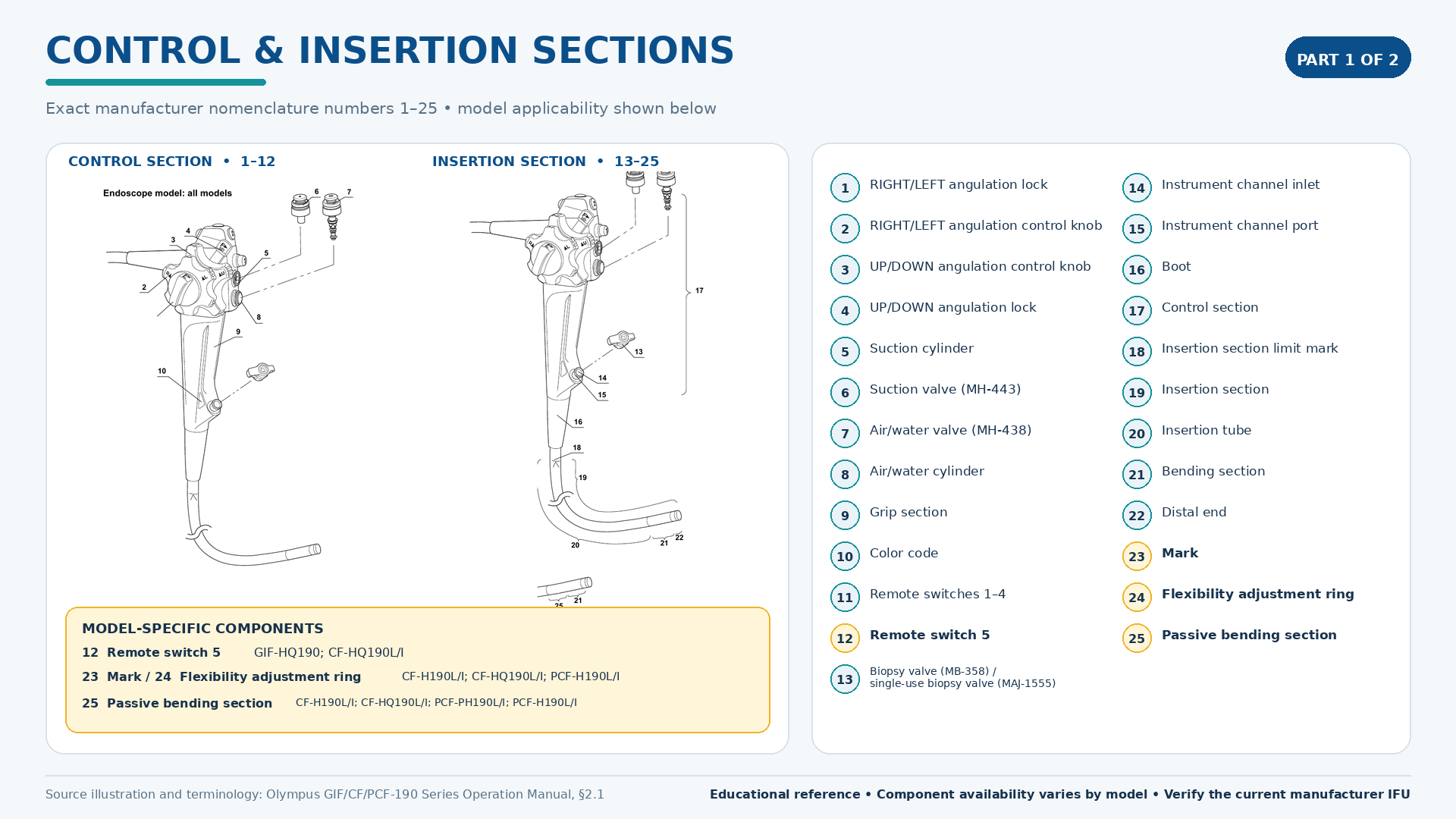

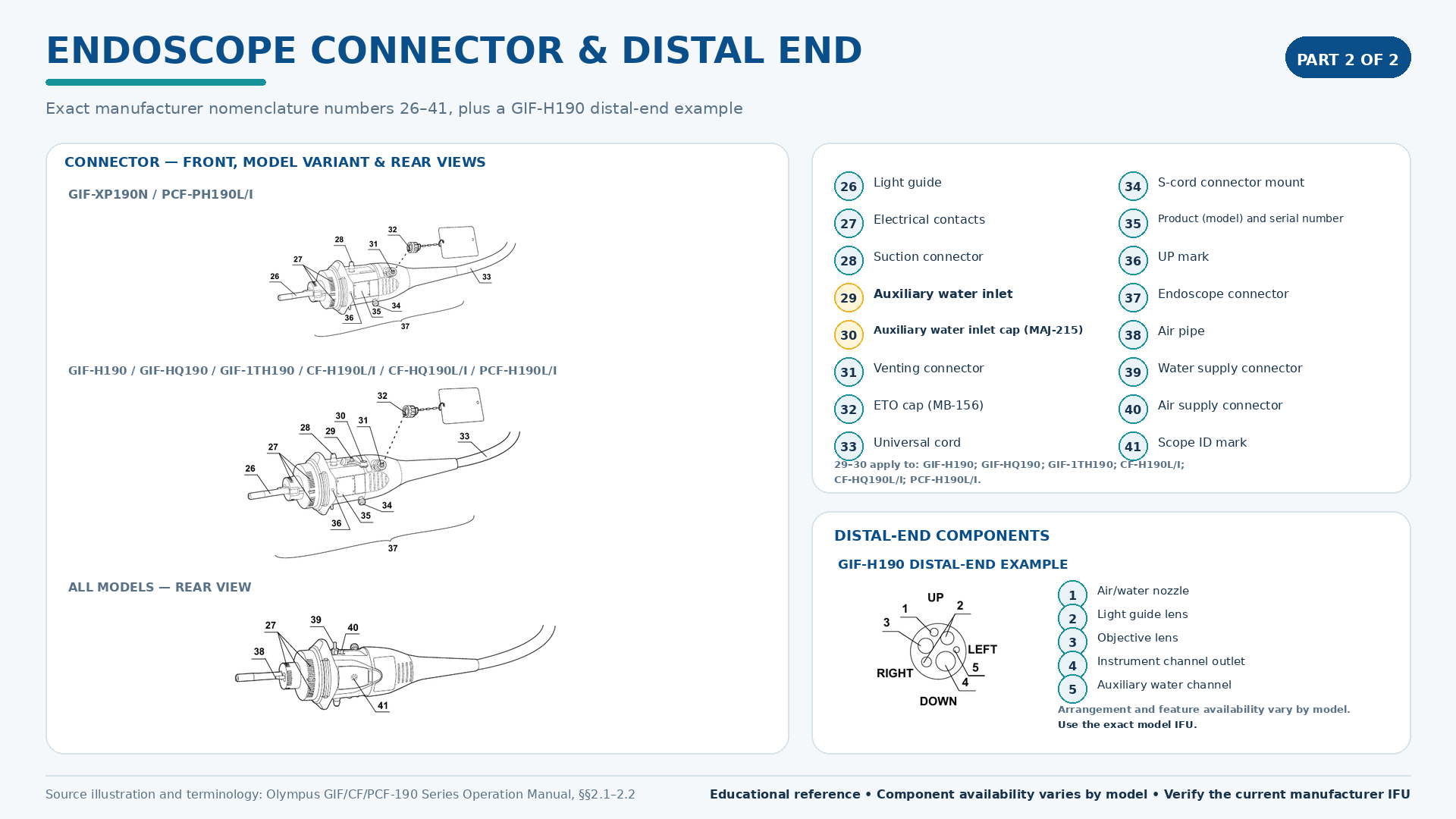

A two-part visual reference for the control section, insertion section, endoscope connector, universal cord, and distal end. Features vary by exact 190-series model.
IFU verifiedManufacturer nomenclature
GIF/CF/PCF-190 Series anatomy reference
A two-part visual reference for the control section, insertion section, endoscope connector, universal cord, and distal end. Features vary by exact 190-series model.
Verified from operation manualOpen two-page PDF
GIF-XP190NGIF-H190GIF-HQ190GIF-1TH190CF-H190L/ICF-HQ190L/IPCF-PH190L/IPCF-H190L/I
Control section
- RIGHT/LEFT angulation lock and control knob
- UP/DOWN angulation lock and control knob
- Suction valve and suction cylinder
- Air/water valve and air/water cylinder
- Grip section and remote switches
- Biopsy valve, instrument channel inlet, and instrument channel port
Insertion section
- Boot and insertion section limit mark
- Insertion section and insertion tube
- Bending section and distal end
- Flexibility adjustment ring on listed CF/PCF models
- Passive bending section on listed CF/PCF models
Endoscope connector
- Light guide, electrical contacts, and suction connector
- Venting connector and universal cord
- Air pipe, water supply connector, and air supply connector
- Auxiliary water inlet and cap on applicable models
- Product/model and serial-number mark
Verified sourceOlympus GIF/CF/PCF-190 Series Operation Manual, document RC1368 06, printed July 22, 2013, pages 20-25.
Manual-cleaning boundaryA separately reviewed Reprocessing Manual now supports manual-cleaning education for GIF-H190 and PCF-H190L/I only. Manual-cleaning instructions for the other models listed above remain pending model-specific IFU review.
Page 1
Point-of-use pre-cleaning sequence
Setup, exterior wipe, suction, air/water channel flushing, and flushing-pump steps.
Page 2

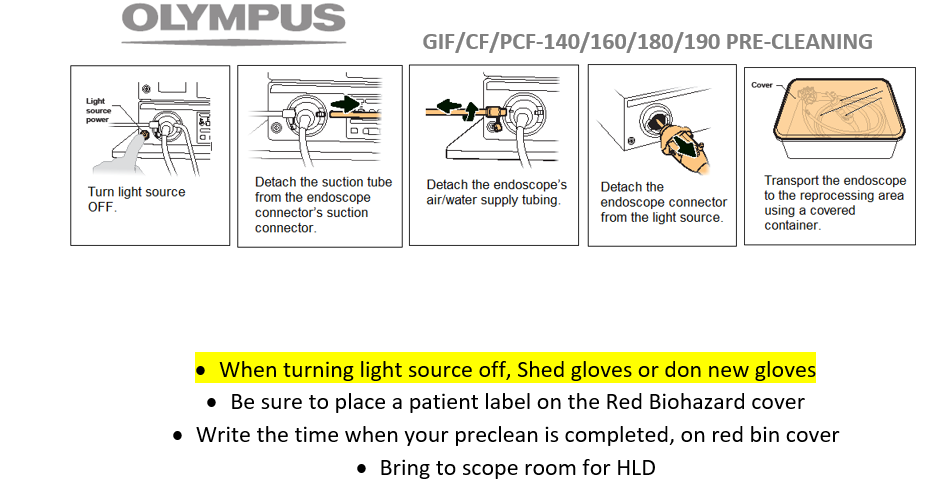

Disconnect, contain, and transport
