← Pre-Cleaning LibraryEUS ultrasound bronchofibervideoscope

Olympus BF-UC190F

Model-specific bedside pre-cleaning education for the Olympus BF-UC190F.

Pre-CleaningScope Anatomy Manual Cleaning

Pre-Cleaning Complete • IFU Reviewed

Pre-cleaning review completedReviewed against the Olympus BF-UC190F Operation Manual, issue 2026-04-17 (RC2243 16), and the Olympus BF-UC190F Endoscope Cleaning Guide (OAIRES0221WC39693).

Scope profile

Olympus BF-UC190F

Manufacturer: Olympus
Category: EUS ultrasound bronchofibervideoscope
Current resources: 1 printable sheet + verified anatomy

Scope anatomy

BF-UC190F scope anatomy reference

A two-part visual reference for the control section, insertion section, connector section, ultrasound components, and distal end of the Olympus BF-UC190F.

IFU verified

Manufacturer nomenclature

BF-UC190F scope anatomy reference

A two-part visual reference for the control section, insertion section, connector section, ultrasound components, and distal end of the Olympus BF-UC190F.

Verified from operation manualOpen two-page PDF

BF-UC190F

Part 1 of 2

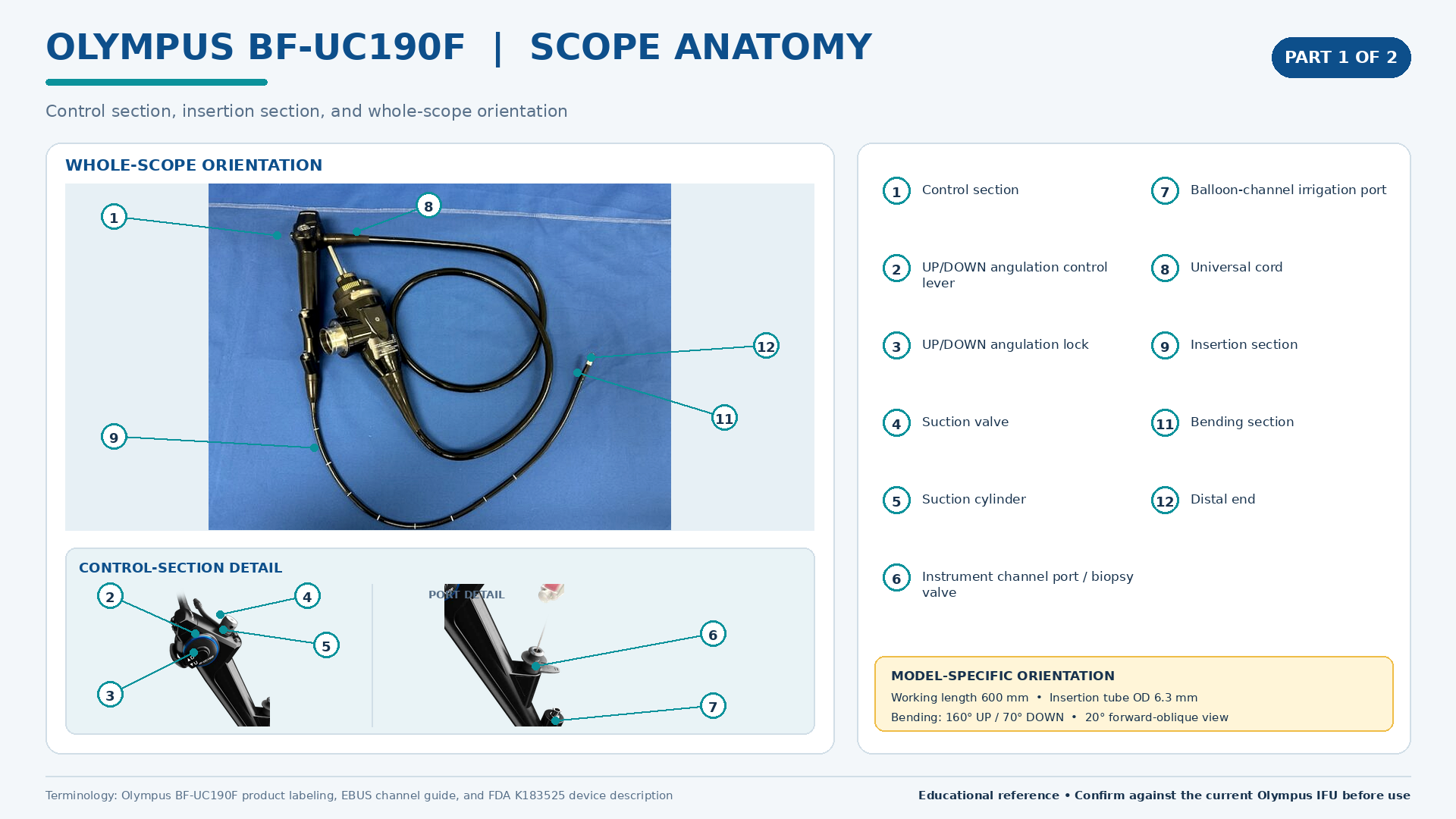

Control and insertion sections

Control-body landmarks, model-specific ports, universal cord, insertion section, bending section, and distal end.

Open full size Download PNG

Olympus BF-UC190F anatomy diagram showing the control section, ports, universal cord, insertion section, bending section, and distal end

Part 2 of 2

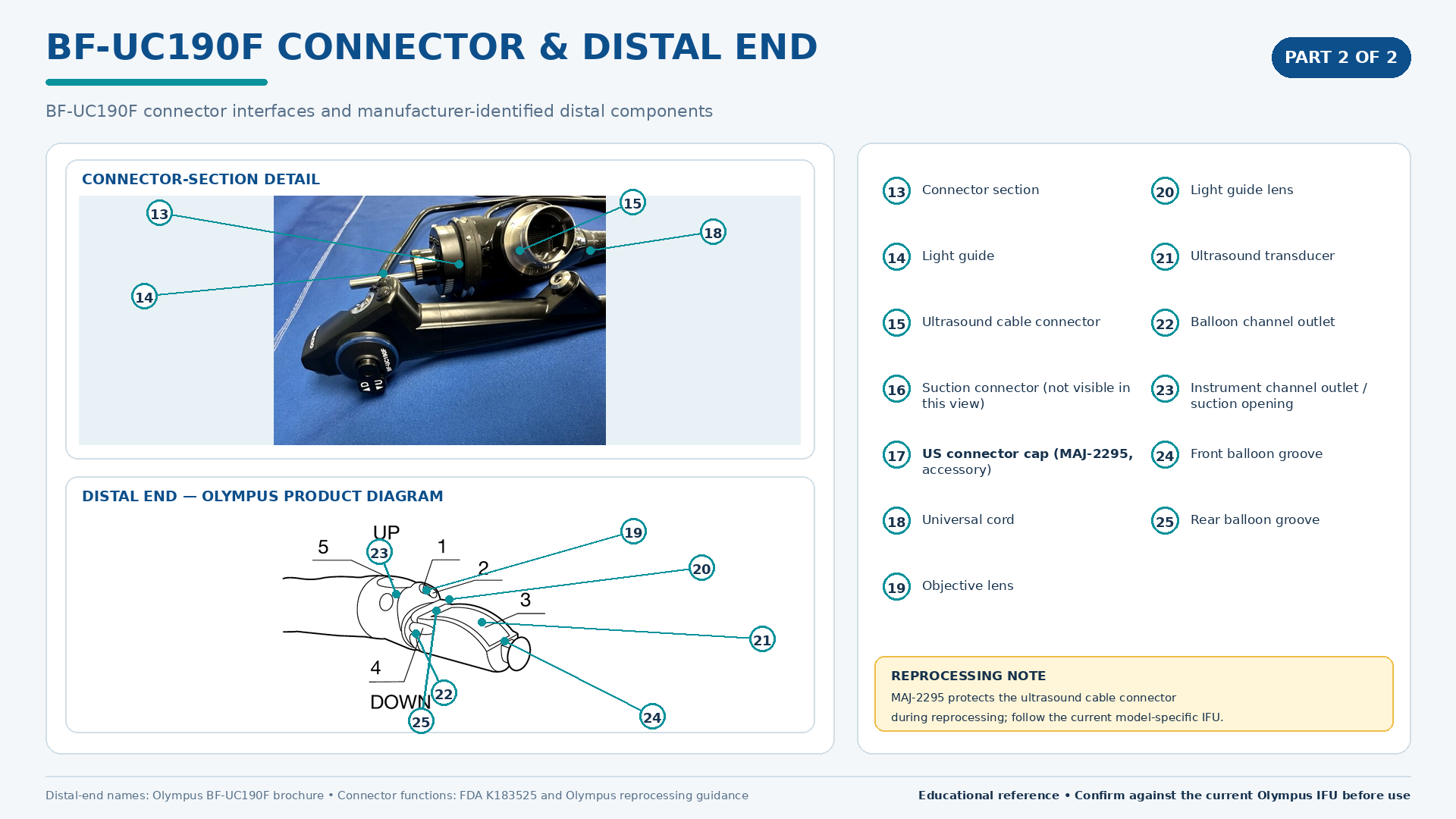

Connector section and distal end

Connector-side interfaces and an Olympus-labeled distal-end reference including the ultrasound transducer and channel outlets.

Open full size Download PNG

Olympus BF-UC190F anatomy diagram showing the connector section and labeled distal-end components

Control and insertion sections

Control section and UP/DOWN angulation control lever and lock
Suction valve and suction cylinder
Instrument channel port with biopsy valve
Balloon-channel irrigation port
Universal cord and insertion section
Bending section and distal end

Connector section

Connector section and light guide
Ultrasound cable connector
Suction connector
US connector cap (MAJ-2295 accessory)
Universal cord

Distal end

Objective lens and light guide lens
Ultrasound transducer
Balloon channel outlet
Instrument channel outlet / suction opening
Front and rear balloon grooves

Verified sourceOlympus BF-UC190F product labeling and brochure, Olympus EBUS channel guidance, and FDA K183525 device description.

Manual-cleaning boundaryUse this visual for anatomy orientation. Confirm every cleaning connection, accessory, and processing step against the current Olympus BF-UC190F instructions for use and facility policy.

Bedside guide

BF-UC190F pre-cleaning at the bedside

Balloon removal, exterior wipe, instrument/suction channel aspiration, and balloon-channel flushing.

Open full size Download image

BF-UC190F pre-cleaning at the bedside Olympus illustrated pre-cleaning guide
